Evaluate assembly complexity, understand alignment risks, and determine when to specify precision dowels or machined pilots for your motion systems.
Key conclusions
Evidence: Clearance holes allow adjustment, but flat mounting surfaces and perpendicular bores prevent binding once torqued.
Action: Always specify surface flatness on mating components before establishing an assembly procedure.
Evidence: Relying purely on fastener friction guarantees drift over time under shock or vibration.
Action: Incorporate dowel pins or tight-tolerance pilots into the actuator housing and adapter bracket designs.
Evidence: A 0.05 mm runout becomes a 1 mm payload error when the downstream lever or tool offset multiplies it by 20:1.
Action: Use the screener to determine if laser alignment or dial indicator verification is necessary.
Evidence: Inconsistent torque application causes more bearing and seal failures than direct overloading.
Action: Document torque sequences, thread locker types, and inspection steps in the manufacturing drawing.
Method and limits
The checker evaluates the overall risk profile based on configuration, load, and tolerance. However, a successful assembly always relies on correctly specified GD&T (Geometric Dimensioning and Tolerancing) on the component drawings.
Always specify flatness, perpendicularity, and true position on your drawings. The best assembly technicians cannot fix poorly machined parts.
Evidence layer
The screener is intentionally simple. The report layer ties each recommendation back to drawing language, measurement evidence, and production control so a sourcing team can decide what to request next.
| Decision Point | Evidence Used | Assembly Implication | Limit / Caveat |
|---|---|---|---|
| Datum and tolerance language | ASME Y14.5 and ISO 1101 geometric tolerancing principles | Define datum faces, flatness, perpendicularity, true position, and runout before machining release. | These standards define communication rules; the actual tolerance value still depends on actuator datasheets, loads, and process capability. |
| Inspection confidence | NIST guidance on measurement uncertainty | Treat CMM or indicator readings as measured evidence with stated uncertainty, not absolute proof of perfect fit. | A passing inspection report is only as useful as the fixture, calibration, and sampling plan behind it. |
| Production repeatability | ISO 9001 quality-management requirements | Use revision control, acceptance criteria, nonconformance handling, and documented inspection records for repeat orders. | Certification alone does not prove a specific actuator assembly will survive side-load or vibration. |
| Supplier package scope | Drawing pack, BOM, assembly notes, and critical-to-quality list | Quote the component set as one controlled interface instead of isolated parts with hidden mating assumptions. | Open evidence is limited for proprietary assemblies; mark unknown mating data before quotation. |
Alignment Methods
| Method | Precision Level | Best Use Case | Trade-off / Risk |
|---|---|---|---|
| Dowel Pin Alignment | High; set by pin/hole fit and datum control | High-cycle dynamic loads and robotic end-effectors | Requires precision reaming and increases machining cost. |
| Machined Pilots / Shoulders | High; excellent for concentricity | Rotary actuators and motor mounts | Requires tight bore tolerances and restricts rotational adjustment. |
| Clearance Holes (Floating) | Low; depends on manual adjustment | Low cycle, static holding, or non-critical positioning | Cheapest method but highly vulnerable to shock and vibration drift. |
| Laser / Indicator Alignment | Very High | Long stroke rodless actuators or multi-axis gantries | Extremely time-consuming and requires skilled technicians. |
Use / do not use
Early RFQ or design review
A production drawing is ready for release without engineering review
Fallback: Ask for actuator datasheets, side-load limits, mounting-face callouts, and inspection criteria before quoting.
Choosing between clearance holes, dowels, pilots, or laser alignment
The assembly includes safety-critical braking, lifting, or medical motion without formal validation
Fallback: Require engineering validation, documented acceptance tests, and customer-approved pass/fail criteria.

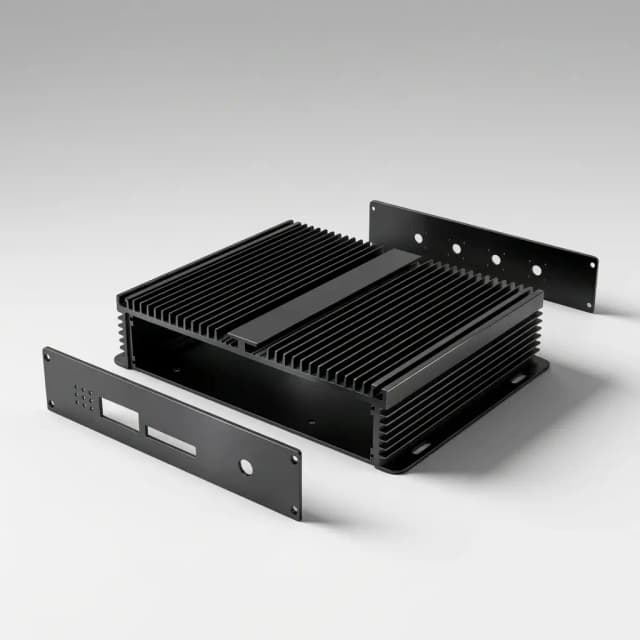

Screening multi-part machined actuator component sets
Mating parts are unknown, reverse engineered, or still controlled by another supplier
Fallback: Mark unknown dimensions as pending and quote a first-article fit-up before batch release.
Assembly Risks
| Risk Factor | System Impact | Mitigation Strategy |
|---|---|---|
| Binding and Stiction | Increased motor current, premature guide wear, and reduced service life. | Use dowel pins for repeatable alignment; never force an actuator into a warped frame. |
| Tolerance Stacking | Multi-axis systems fail to reach target coordinates or experience localized binding. | Machined reference edges and CMM verification of individual plates before final assembly. |
| Fastener Loosening | Loss of alignment during high-cycle or shock-loaded operations. | Specify proper torque, thread lock, and nord-lock washers for critical connections. |
| Improper Coupling | Shaft runout and premature coupling failure or bearing damage. | Use flexible couplings where appropriate and verify concentricity with a dial indicator. |
Scenario examples
Assumptions: The frame hole pattern is fixed and the new actuator body has different mounting datums.
Likely result: Moderate risk unless an adapter plate controls flatness and preserves the stroke centerline.
Next step: Send the old frame drawing, new actuator datasheet, and desired stroke envelope for DFM review.
Assumptions: Several actuators stack position error and payload offset increases the effect of runout.
Likely result: High risk; dowel features, reference edges, and measured calibration points are normally justified.
Next step: Define the datum chain and acceptance points before machining the base plate or brackets.
Assumptions: The actuator sees pump vibration, thermal cycles, and repeated torque reversals.
Likely result: High risk for fastener loosening and coupling wear if the mount relies only on bolt clearance.
Next step: Specify pilot diameters, locking hardware, torque sequence, and post-assembly runout checks.
Assumptions: Cleaning chemicals and stainless hardware are required, but sliding interfaces must stay aligned.
Likely result: Moderate risk; corrosion control and masked datum surfaces matter as much as material choice.
Next step: Provide cleaning media, finish requirements, and which surfaces must remain uncoated or rechecked.
Sources and visual checks
Public standards and metrology guidance support the decision framework, while project-specific tolerances still require the actual actuator datasheet, mating-part drawings, and inspection plan.
Used for datum, dimensioning, and tolerance communication context. Verified July 2, 2026.
Used for form, orientation, location, and runout tolerance context. Verified July 2, 2026.
Used for measurement-uncertainty framing around CMM and metrology evidence. Verified July 2, 2026.
Used for documented process control and repeat-order quality language. Verified July 2, 2026; ISO lists ISO 9001:2015 as current but expected to be replaced, so treat it as process-control context rather than release-specific update guidance.
RFQ path
Include the screener outcome with your drawing pack, BOM, actuator datasheets, critical-to-quality list, expected load case, and required inspection records. If any mating data is unknown, mark it as pending instead of forcing a tolerance guess.
Related decisions
Frequently Asked Questions
This usually occurs when the mounting frame is not perfectly flat. Torquing the bolts forces the actuator body to conform to the warped surface, bending the internal guides or rod.
Not necessarily. Dowel pins are essential for high-cycle, shock-loaded, or precision applications to prevent drift and ensure repeatable reassembly. For static, low-load applications, standard clearance holes may suffice.
Side-loading caused by misalignment. Even a slight angular misalignment can drastically reduce the life of seals and bearings.
Start with a robust, precision-machined base plate. Use dowel pins for alignment, and consider adding adjustable features (like eccentric bushings) only where necessary to calibrate out accumulated errors.
Ask for material certification, first-article inspection, CMM or gauge results for critical features, finish certification when applicable, and a clear revision matrix for every mating part.
Not always. CMM is most useful when true position, perpendicularity, concentricity, or cross-part datum relationships drive assembly fit. Simple low-risk brackets may only need functional gauges and critical dimension checks.
Do not hide them inside a quote assumption. Mark them as pending, quote a sample fit-up, or request the mating component drawing before committing to batch tolerances.
A machining supplier can provide dimensional and material evidence for its scope, but system reliability also depends on actuator selection, loads, controls, lubrication, environment, and customer validation testing.
Send the full drawing pack, STEP files, BOM, actuator datasheets, load direction, stroke envelope, material and finish requirements, inspection expectations, prototype quantity, and annual forecast.
Quote the package together when interfaces are shared. Separate quotes can hide tolerance stack, finish compatibility, and revision-control risks between housings, shafts, brackets, and couplings.
Use a fixture when repeatability matters, the assembly has dowels or pilots, the stroke centerline is hard to access, or technicians cannot reliably hold alignment while torqueing fasteners.
Start with a limited DFM review and prototype inspection plan. Do not move to batch pricing until unknown datums, mating parts, and critical-to-quality dimensions are resolved.
