Inspection and Quality Controls

Inspection planning for actuator components where fit, finish, runout, bore quality, and mounting accuracy affect assembly performance.

Best Fit For:Best for quality and procurement teams that need clear acceptance expectations before approving a new supplier.

Actuator housing with CTQ inspection features marked

Capability Highlights

Critical-to-quality review before production
In-process and outgoing inspection planning
Documentation expectations aligned during RFQ

Typical Engagement Scope

Actuator housings with critical bores
Precision shafts and rods
Mounting brackets and flanges
Multi-part actuator component packages

Execution Focus

Inspection method, gauge availability, and reporting scope
Critical dimensions, runout, flatness, thread checks, and surface finish
Control of revisions and nonconforming findings

Program Evaluation Matrix

Program Metric	Typical Range	Procurement Value
CTQ coverage	100% on critical features	Inspection should focus on the characteristics that matter to actuator assembly and service.
CMM measurement capability	±0.003 mm repeatability	Features tighter than ±0.02 mm require CMM verification. Caliper checks alone cannot reliably confirm GD&T requirements like true position or concentricity.

RFQ Preparation Checklist

Critical dimensions and inspection frequency
Required reports or certificates
Gauge or fixture requirements if customer-specific
Packaging and handling requirements for inspected parts

Risk and Mitigation

Inspection mismatch: Agree inspection method and reporting scope before sample approval.
Gauge R&R exceeding 10% of tolerance band: Verify measurement system capability before production. If gauge variation exceeds 10% of the part tolerance, upgrade to CMM or optical measurement.

Related Products

Precision shaft requiring runout and diameter inspection

Actuator rod with thread and straightness quality controls

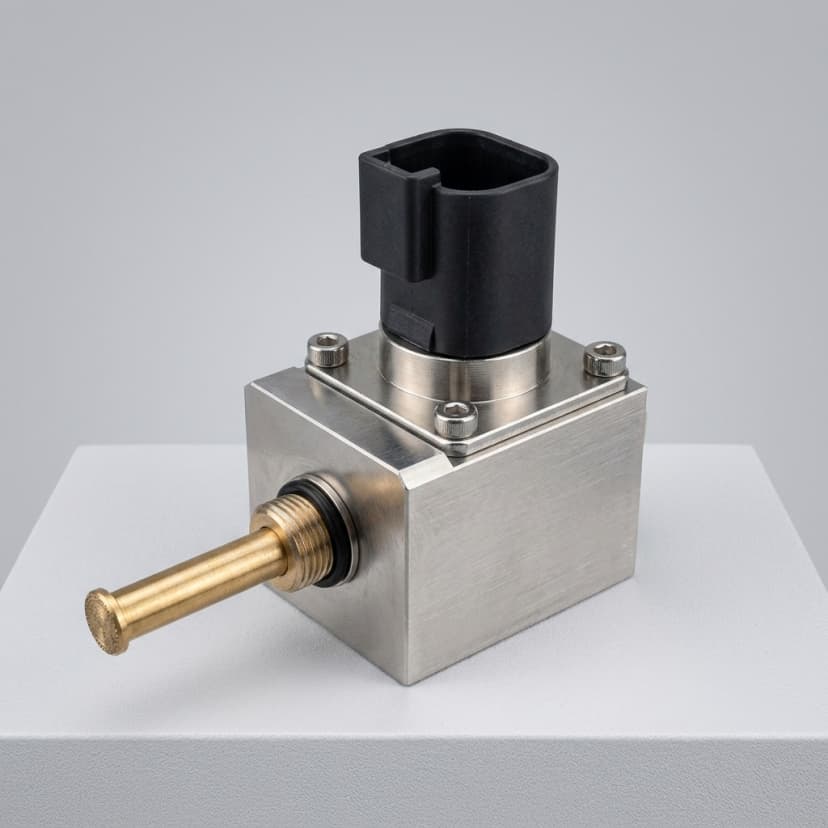

Precision sensor demonstrating quality-controlled component

Buyer FAQ

Can inspection reports be included?

Yes, if the required inspection scope is included in the RFQ and agreed before production.

Do you provide CMM reports with every shipment?

CMM reports are included for all critical features flagged in the drawing. Standard shipments include a dimensional inspection summary; full CMM data is available on request.
