← Back to OEM Capabilities

Drawing Review and DFM

Manufacturability review for actuator component drawings before prototype or batch machining begins.

Best Fit For:Best for engineers who want machining feedback before releasing actuator component drawings to production.

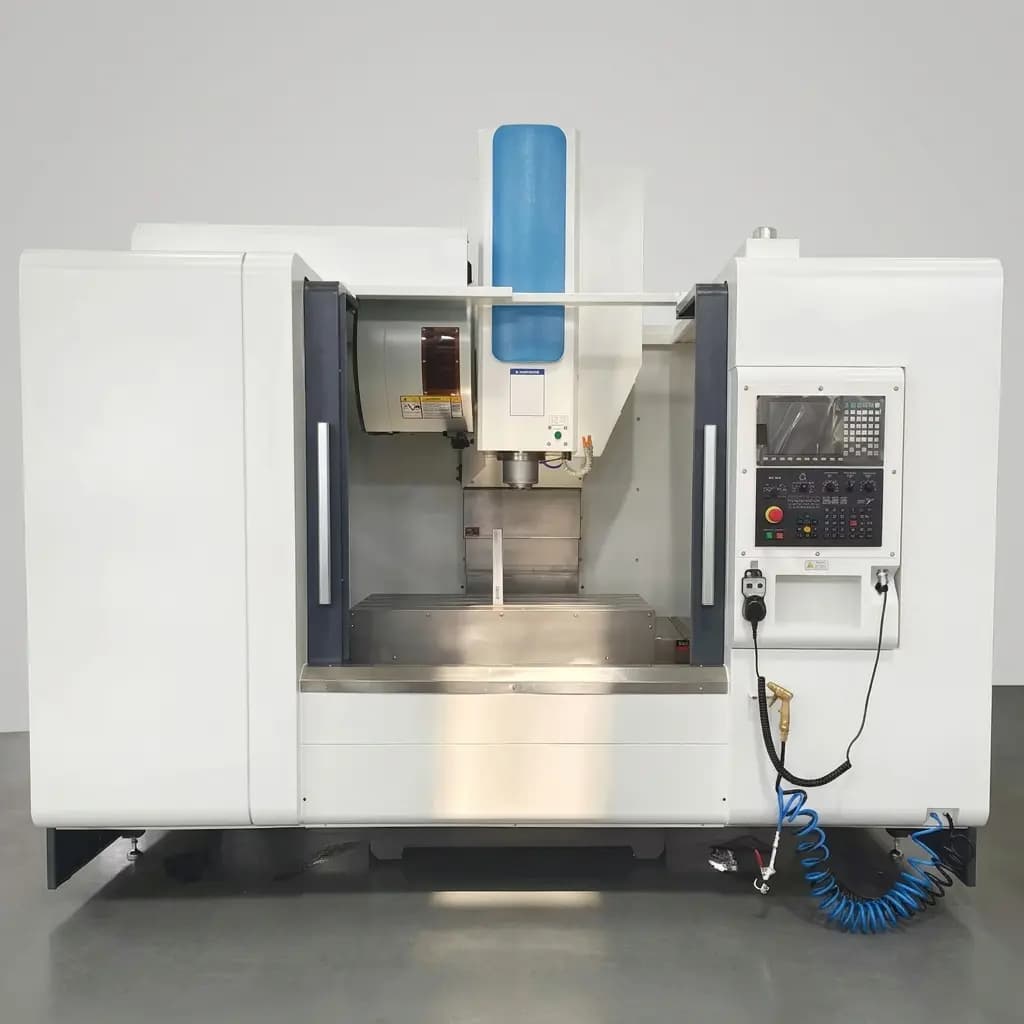

CNC milling machine for drawing review and DFM validation

Capability Highlights

  • Review of critical dimensions, datums, tolerances, and finishes
  • Early feedback on machining access, burr control, and inspection method
  • Clarification list to reduce RFQ and sample loops

Typical Engagement Scope

  • New actuator part drawings
  • Supplier transfer projects
  • Legacy replacement components
  • Cost-down and manufacturability reviews

Execution Focus

  • Datum scheme and critical-to-quality characteristics
  • Material, finish, heat treatment, and inspection feasibility
  • Risk notes that should be resolved before quotation freeze

Program Evaluation Matrix

Program MetricTypical RangeProcurement Value
DFM clarityPre-quote reviewEarly review prevents avoidable machining, inspection, and assembly problems.
Cost-impact features identified3–8 per drawing typicalTight tolerances on non-critical features, deep pockets, and thin walls inflate cost. DFM review flags these for engineering decision.

RFQ Preparation Checklist

  1. Current 2D drawing and 3D model
  2. Critical dimensions and acceptance method
  3. Target material, finish, quantity, and timeline
  4. Known fit or quality issues from previous suppliers

Risk and Mitigation

  • Ambiguous drawing requirement: Return a clarification list before quote lock and sample production.
  • Over-toleranced features driving unnecessary cost: Flag features where relaxing tolerance from ±0.01 to ±0.05 mm could reduce unit cost by 15–30% without affecting function.

Related Products

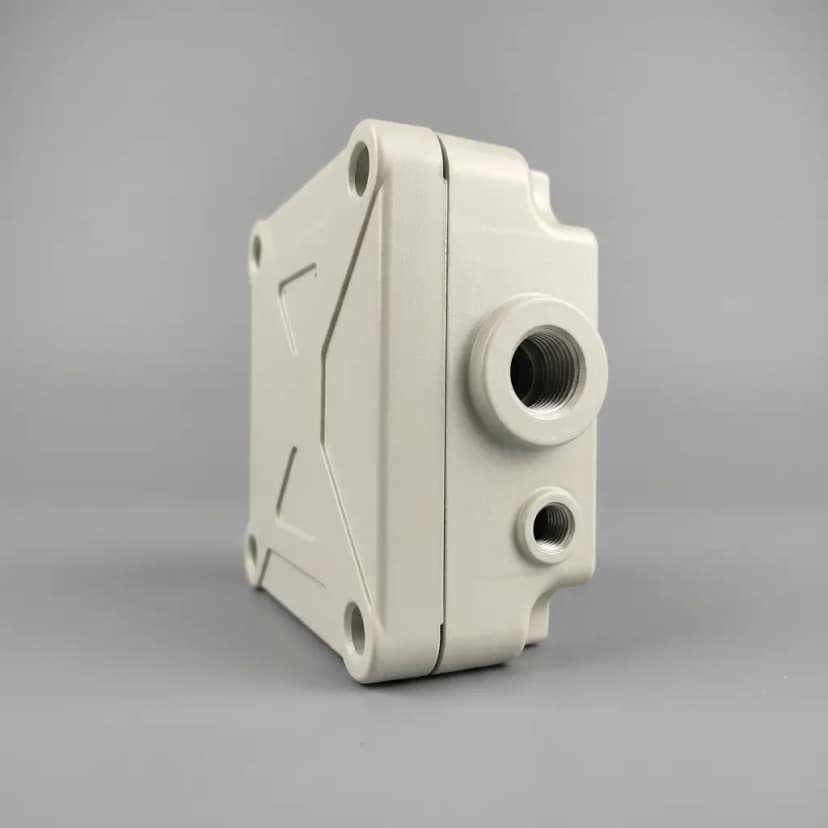

Actuator housing demonstrating DFM-aligned machining
Actuator housing demonstrating DFM-aligned machining

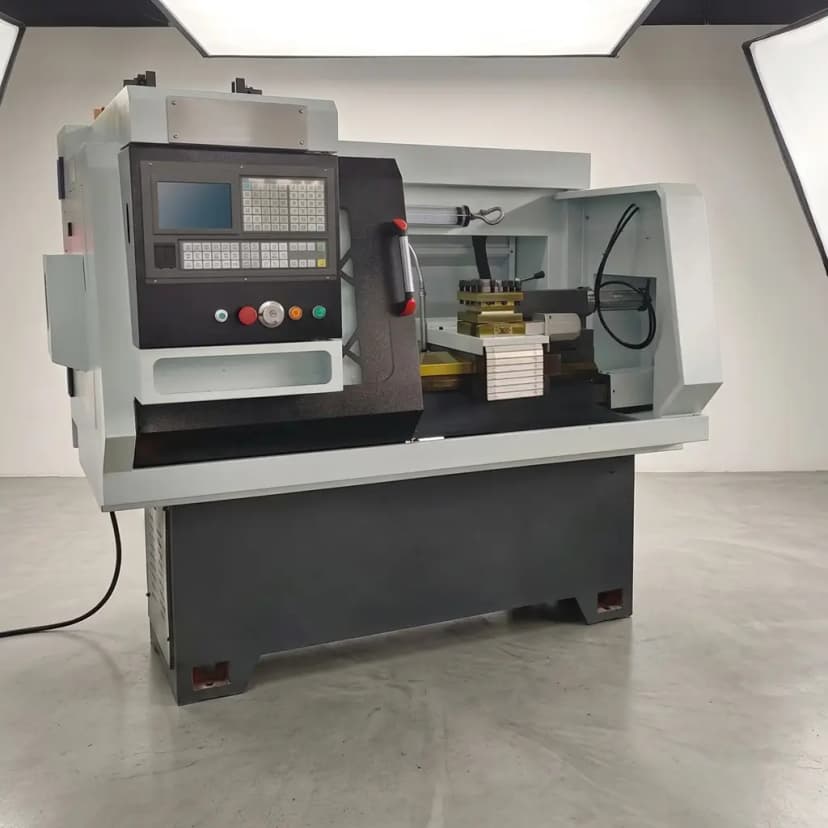

CNC lathe for turning-based DFM review
CNC lathe for turning-based DFM review

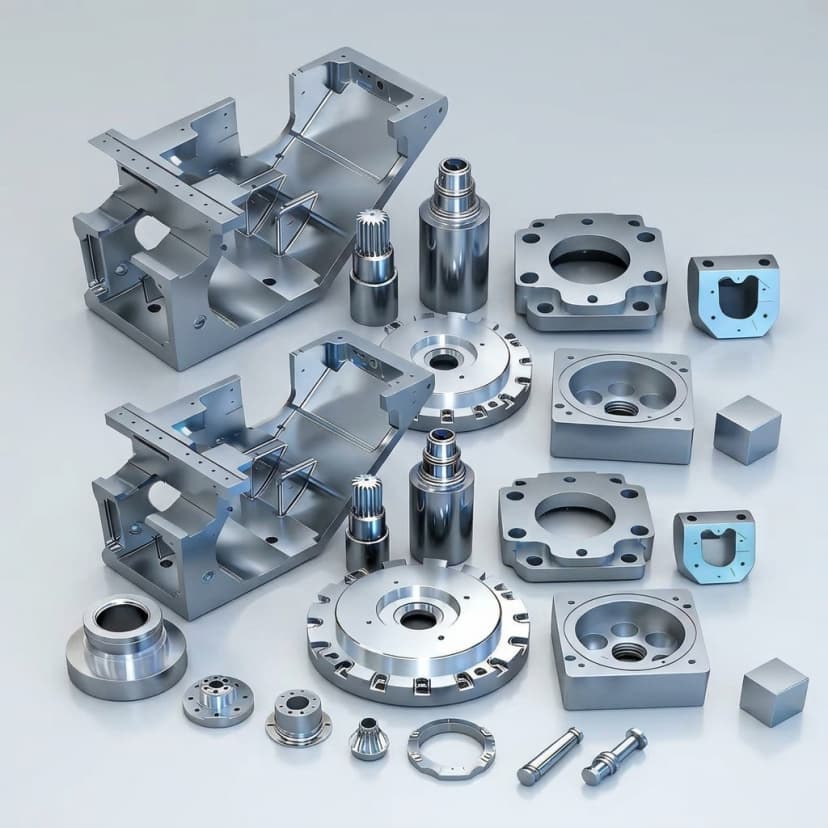

Custom CNC parts produced after DFM validation
Custom CNC parts produced after DFM validation

Buyer FAQ

Can DFM feedback happen before we request a formal quote?

Yes. Send the drawing package and mark the dimensions or issues you want reviewed first.

How long does a DFM review typically take?

Standard drawings are reviewed within 1–2 business days. Complex assemblies or multi-part packages may take 3–5 days with a detailed clarification list returned.
